Infrared Obstacle Avoidance Sensor Module Photoelectric Sensor IR Evading Obstacle Sensor for UNO Rev3 Controller

FOB Reference Price:Get Latest Price
US $5.65-7.53 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-02S003A
Usage:
Arduino
Theory:
IR Evading Obstacle Detection Sensor
Output:
Digital Sensor
Product name:
Infrared Obstacle Avoidance Sensor Module
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Box
Port
Shenzhen
Lead Time :
3-5 days according to you quantity

ALSRobotBase Infrared Obstacle Avoidance Sensor Module Photoelectric Sensor IR Evading Obstacle Sensor for UNO Rev3 Controller



 RB-02S003A-IR Sensor(1)

Description

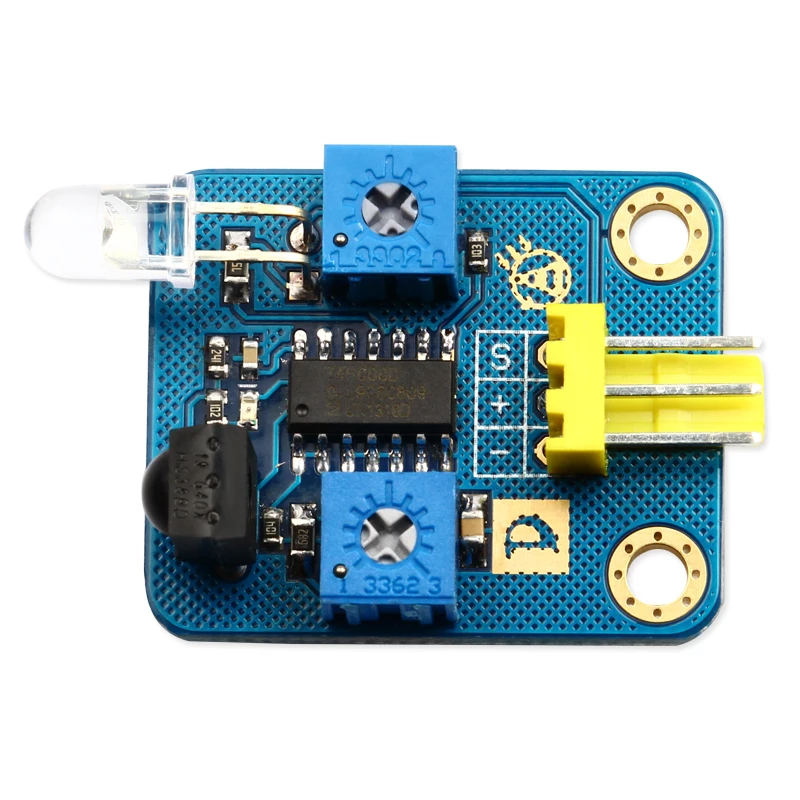

This Mini IR Evading Obstacle Detection Sensor is a distance adjustable sensor. Mini IR Evading Obstacle Detection Sensor has high adaptability to ambient light with high accuracy. This IR Evading Obstacle Detection Sensor comes with transmitter and receiver. The transmitter transmits certain frequency IR and when IR hits into obstacles, it reflects and is received by the receiver and indicator lights up. After being processed by circuit, signal output port outputs digital signal and then detect the distance through potentiometer. The Detecting distance range is 2-40cm. Working voltage range is 3.3v-5v. For the wide rang of fluctuation of voltage, it can be applied to various microcontroller.



RB-02S003A-IR Sensor(4)

Gold-Plating Thicken Mini IR Evading Obstacle Detection Sensor





Specifications

Working Voltage: DC 3.3V-5V

Working Current: ≥20mA

Working Temperature: -10°C—+50°C

Detecting Distanc:2-40cm
IO Port: 4coil port (-/+/S/EN)
Output Signal: TTL ( low voltage with obstacles, high voltage without obstacles)
Adjust Mode: multi-turn resistance
Effective angle: 35°
Dimensions: 28mm x 23mm
Weight: 5g



RB-02S003A-IR Sensor(2)

  Obstacle Detection Sensor Can Adjustable Detection Range
