Water Pressure Sensor Water Level Sensor Module Fit Carduino Microcontroller

FOB Reference Price:Get Latest Price
US $1.99-2.1 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Heilongjiang, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-02S048A
Application:
Education
SupplyAbility
SupplyAbility:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
BOX
Port
Shanghai
Lead Time :
3 days according to your order

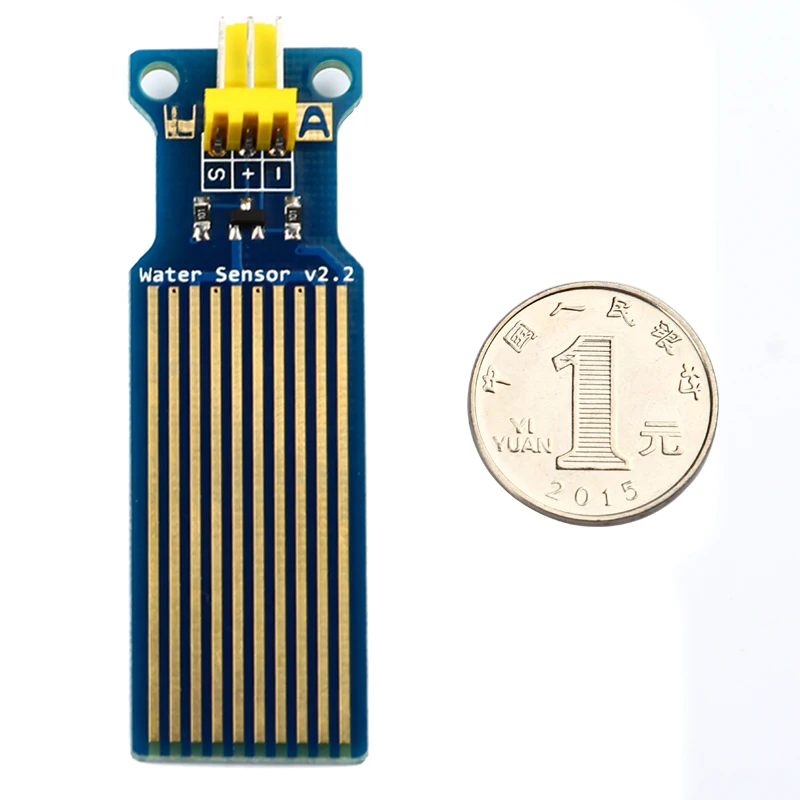

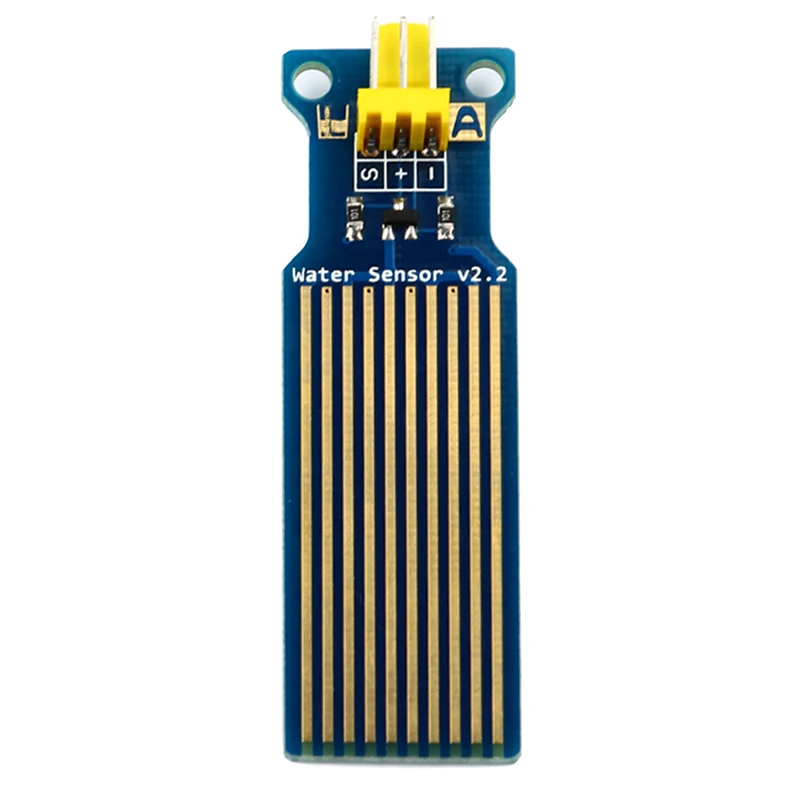

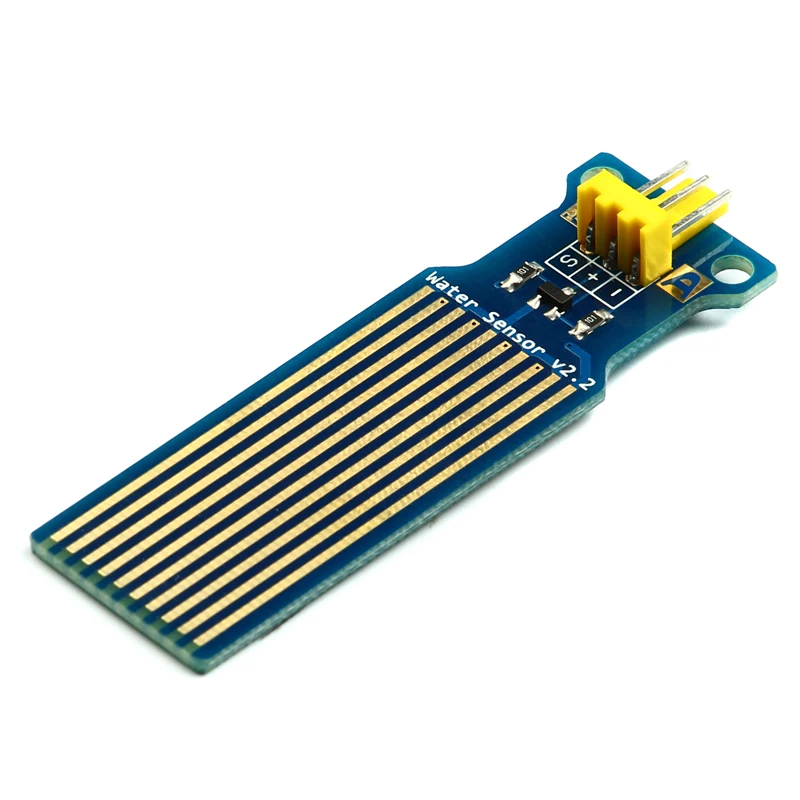

Water Pressure Sensor Water Level Sensor Module Fit Carduino Microcontroller

Description:

ALSRobotBase Latest Water Sensor v1.0 is development by Harbin Alsrobot Technology Co.LTD through a series of exposed parallel wires stitch measuring to size water yield. This is simple and small portable water level/water droplet identification, detection sensor water that have high cost performance. Complete water yield and analog conversion, the output value apply to your custom function. It is low power consumption and high sensitivity. It can make better performance with Arduino 328 controller and sensor relay shield



Specifications:
1. Name: Water sensor
2. Article Number: RB-02S048
3. Working Voltage: DC5V
4. Working Current: <20mA
5. Sensor Type: Simulation
6. Detection Area: 40 mm x 16 mm
7. Manufacturing Process: FR4 double spray tin
8. Fixed Hole Size: 3.2 mm
9. Humanized Design: Half moon sag nonskid treatment
10. Working Temperature: 10 °C to 30 °C
11. Work Humidity: 10% to 90% without condensation
12. Weight: 3 g
13. Size: 65 mm x 20 mm x 8 mm
14. Shipping List: Water sensor x1
15. Packing: Electrostatic bag seal
16.Optional Accessories: 3 pin sensor connecting line,Arduino 328 controller,Sensor relay shield
