Aluminium Alloy Mechanical Robotic Claw for Educational Robot

FOB Reference Price:Get Latest Price
US $29-36.3 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-13K050
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard box
Port
Shenzhen
Lead Time :
Pre-order 3-10 days according to your order



  • Material: All aluminum alloy
  • Weight: About 68g (Do not contain the motor)
  • The largest opening angle:  55mm
  • The overall length: 108mm (the longest length when the gripper closes)
  • The overall width: 98mm (the largest width when the gripper copens)
  • Two severos can be installed, one implenments the action of opening and closing, the other wrist rotition.

Aluminium Alloy Robotic Claw

  • 1.Claws Material: all aluminumClaws
  • 2.Weight: Approx 68g (without motor)
  • 3.Maximum angle of the claw: 55mm
  • 4.The claws overall length: 110mm (claws closed when the overall maximum length)
  • 5.Claws overall width: 98mm (claws open the maximum overall width)

RB-421 servo motor

  • Control System:+Pulse Width Control 1500usec Neutral
  • Operating Voltage:4.8-6.0 Volts
  • Operating Temperature Range:0 to +60 Degree C
  • Operating Speed (4.8V):0.17sec/60° at no load
  • Operating Speed (6.0V):0.40sec/60° at no load
  • Stall Torque:(4.8V):2.9kg·cm ;(6.0V):4.6kg·cm
  • Current Drain (4.8V):7.6mA/idle and 160mA no load operating
  • Current Drain (6.0V):7.9mA/idle and 190mA no load operating
  • Dead Band Width:20usec
  • Connector Wire Length:300mm
  • Dimensions:40.2mm X 20.2mm X 43.2mm
  • Weight:42g

  •  Aluminium Alloy Robotic Claw: 1 piece
  •  RB-421 servo motor:2 pieces

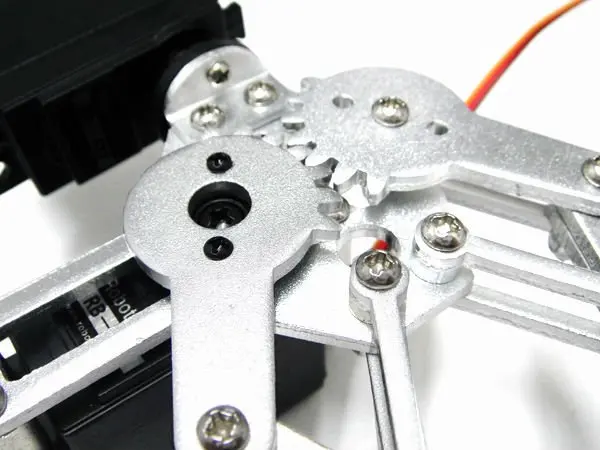

Aluminium Alloy Robotic Claw Mechanical Robot Arm-details
