Land Rover 5 Rubber Track Chassis of Robotic Mobile Car Platform with 4 Motors and 4 Encoders

FOB Reference Price:Get Latest Price
US $37.5-47.5 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-13K042
Product Name:
Land Rover 5 Rubber Track Chassis
Item No:
RB-13K042
Motor rated voltage:
7.2V
Motor stall current:
2.5A
Output shaft stall torque:
10Kg/cm
Gearbox ratio:
86.8:1
Encoder type:
Quadrature
Speed:
1Km/hr
Weight:
1124g
Application:
Game, Test, DIY, Robot Education
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard box
Port
Shenzhen
Lead Time :
3-15 days according to order qty

Description

Rover 5 is a new breed of tracked robot chassis designed specifically for students and hobbyist. Unlike conventional tracked chassis's the clearance can be adjusted by rotating the gearboxes in 5-degree increments. "Stretchy" rubber treads maintain tension as the clearance is raised.
Inside of the chassis are 4 noise suppression coils at the bottom and a battery holder that accepts 6x AA batteries (not included).

It is recommended to use NiMh batteries as they last longer and have a higher current output than Alkaline batteries.

Each gearbox has an 87:1 ratio. The chassis can be upgraded to include four motors and encoders making it ideal for mecanum wheels.

Specifications

  • Motor rated voltage: 7.2V
  • Motor stall current: 2.5A
  • Output shaft stall torque: 10Kg/cm
  • Gearbox ratio: 86.8:1
  • Encoder type: Quadrature
  • Encoder resolution: 1000 state changes per 3 wheel rotations
  • Speed: 1Km/hr
  • Four motors
  • Four encoders
  • Encoder interface:
  • Red = +5V
  • Black = 0V
  • Yellow and White = Quadrature encoder outputs

pictures

RB-13K042 Tracked Chassis 3

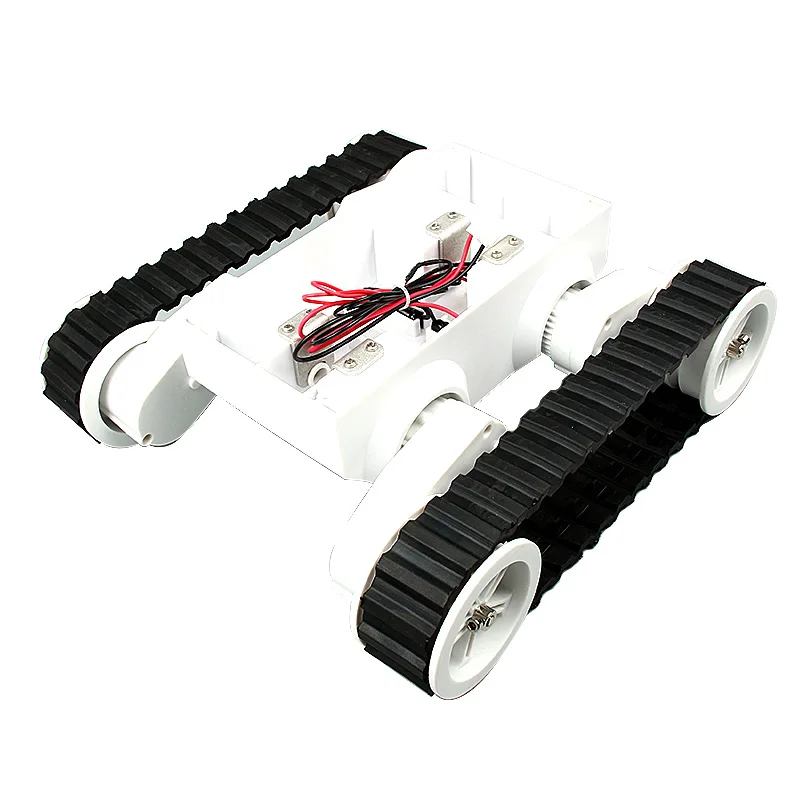

Land Rover 5 Rubber Track Chassis of Robotic Mobile Car Platform with 4 Motors and

RB-13K042 Tracked Chassis 4

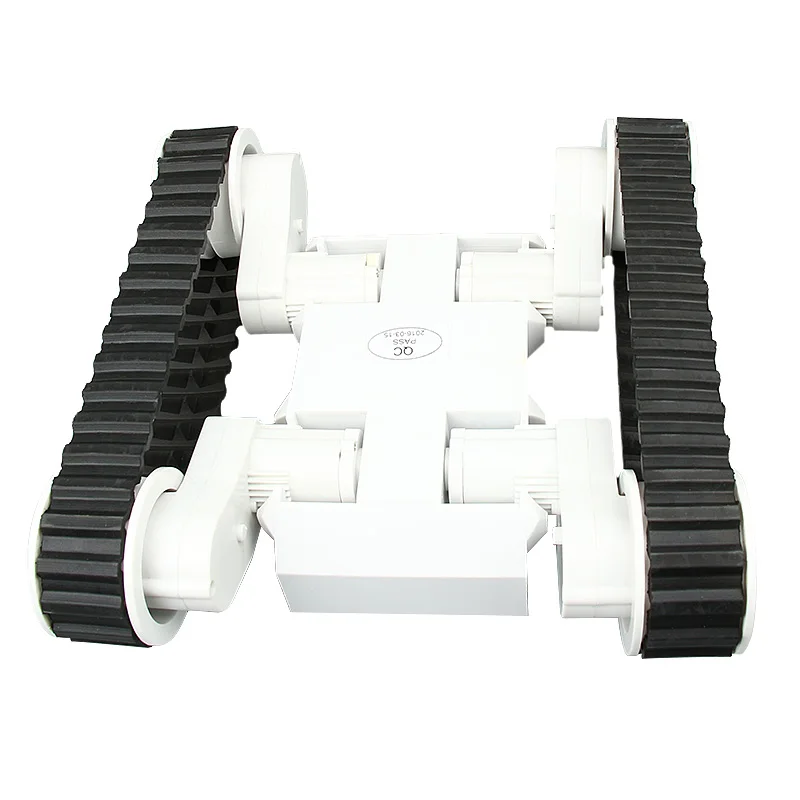

Land Rover 5 Rubber Track Chassis-Back Side

RB-13K042 Tracked Chassis 2

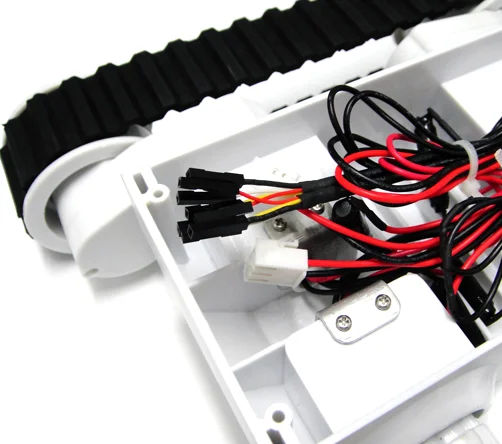

Land Rover 5 Rubber Track Chassis-Details

2

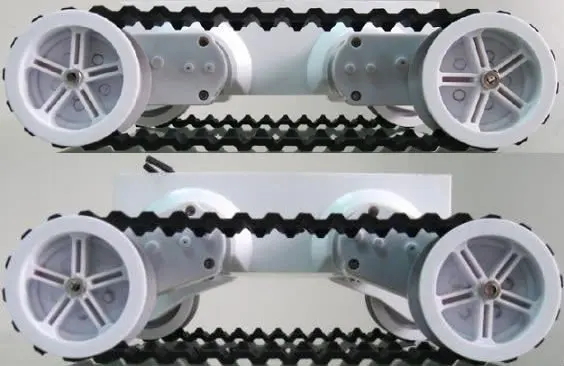

Land Rover 5 Rubber Track Chassis-Side view



1

 Land Rover 5 Rubber Track Chassis-Function display
