32 channels servo controller kit for robot robotic arm biped robot

FOB Reference Price:Get Latest Price
US $24.75-30.5 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Heilongjiang, China (Mainland)
Brand Name:
RobotBase
Model Number:
RB-01C014
weight:
37
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
BOX
Port
Shenzhen
Lead Time :
3-5 days according to quantity





Description

This product can control as many as 32 servo motors coordination motions, has position control and speed control, can use PC as upper computer control software ,also can add other modules to do offline work.simple control command,high precision of control angle,Baud rate can be changed ,small volume ,light weight,used in humanoid robot, bionic robot,multi degree of freedom robotic arm as master controller.

Specifications

  • Control part terminals power supply range: + 7V - + 12 v.
  • Control part DC plugs power supply range: USB or DC 5V power supply.
  • Servo motor terminals power supply range: + 4 - + 6V.
  • Control channel: 32 channels.
  • Communications input: RS232 (serial) or TTL.
  • Servomotor resolution: about 1us, 0.09 degree.
  • Baud rate Settings: 2400 9600 38.4 k 115.2k (can be converted).
  • Servo motor: support Futaba or Hitec and TowerPro
  • PC interface: DB9F.
  • Size: 65mm x 60mm x 1.5 mm.
  • Control mode: serial accept command mode. (upper computer software control or serial port microprocessor attached)
  • Other: provide upper computer system power supply interface.

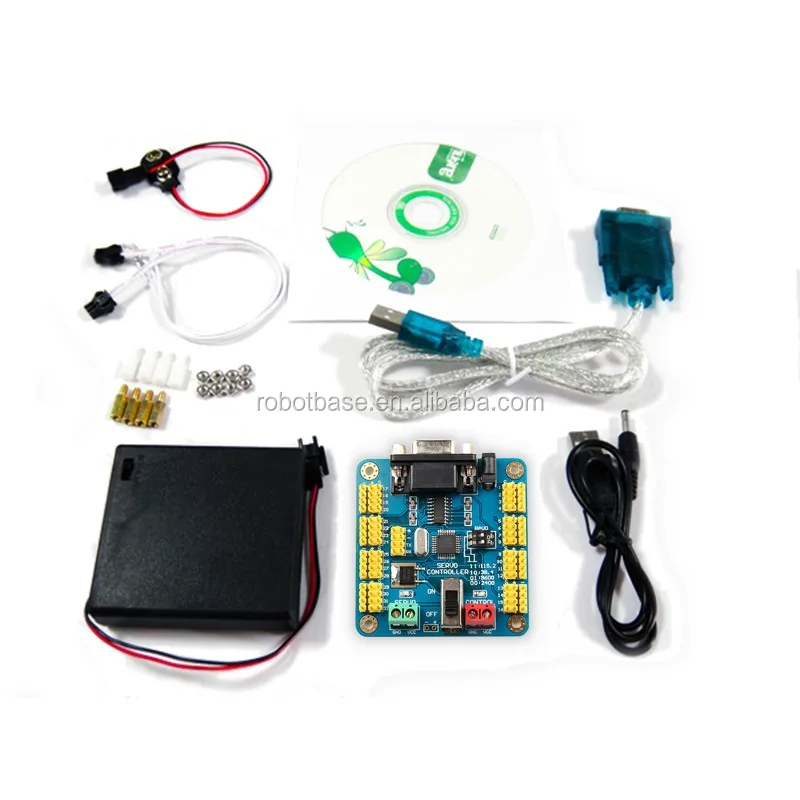

Packing List

  • 1 x 32 Servo Motor Controller Main Board
  • 1 x Data Disk (PC Control Software and Product Brochures)
  • 1 x USB
  • 1 x No.5 Four / Four Battery Compartment
  • 1 x 9 V Battery Buckle Wiring
  • 2 x Terminal Wiring
  • 1 x USB-RS232 Communication Line
  • 4 x Copper Stud
  • 4 x Nylon Studs

pictures

RB-01C014-32 ChannelsControllerKit(6)

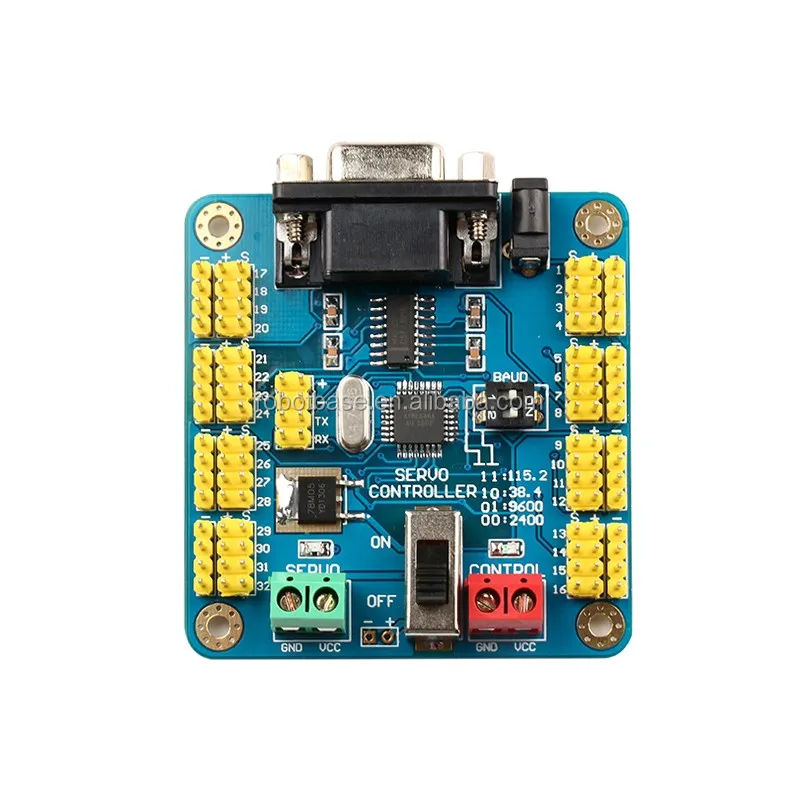

 32 channels servo controller kit
